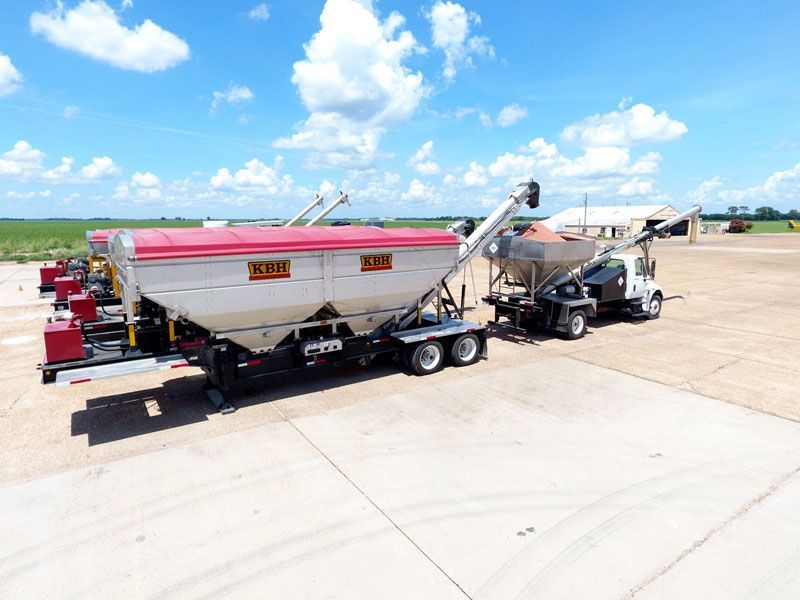

KBH Rear Discharge Belt 2 Compartment Model# TT2000B

Introducing the Rear Discharge Belt 2 Compartment Model# TT2000B from KBH Equipment—your reliable partner in agricultural innovation! Designed for efficiency, this model ensures even distribution of materials, making it perfect for cotton harvest operations and beyond. With our commitment to quality and durability, the TT2000B is tailored to meet your farming needs while enhancing productivity. Trust KBH Equipment to provide cutting-edge solutions that make your agricultural tasks smoother and more efficient. Let's cultivate success together!

Hoppers

• Steep Hopper Slopes - Sides = 55 Degrees/ Ends = 40 degrees / Middle = 48 Degrees

• 1,065 Cubic Feet - Total Capacity

• Capacity: 24.5 Tons (Urea)

• Dump-In Height: 11’2”

• Lower Center of Gravity

• Stainless Hopper Cradle (Bolted)

• Hoppers Moved Forward

Better Weight Distribution On Axles

• Stainless Hopper Divider

(Full-Height Divider Reaches Tarp Bows)

• Stainless Hopper Safety/Agitation Ports

• Stainless Hopper Grates


Trailer

• Empty Weight - 14,760 lbs.

• Polyurethane Enamel Paint With Epoxy Primer

• Hutch Cast Iron Axle Hangers

• Stainless Rear and Front Fenders

• Stainless Engine Cover

• Stainless Axle/Air Tank Cover


Belly Augers

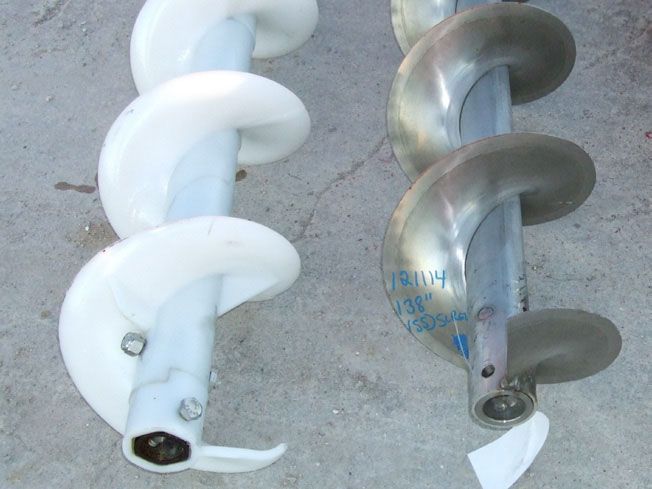

• Stainless Augers & Shafts

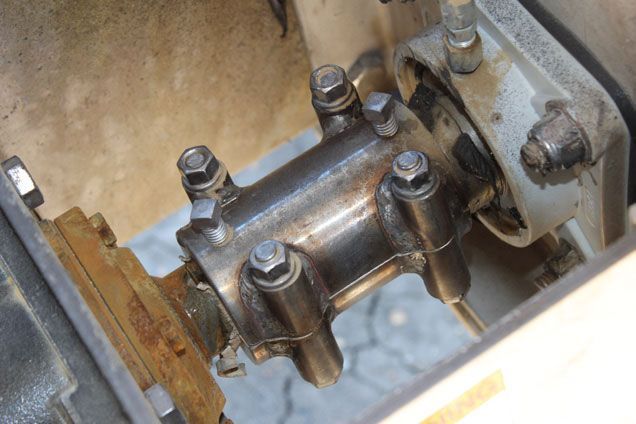

• Stainless Two-Piece Bolted Auger Couplers

• Discharge Auger Hanger Bearing: Bronze Bushing

• Discharge Auger Lower Bearing: Stainless

• Reversible Discharge Auger With Pressure Check

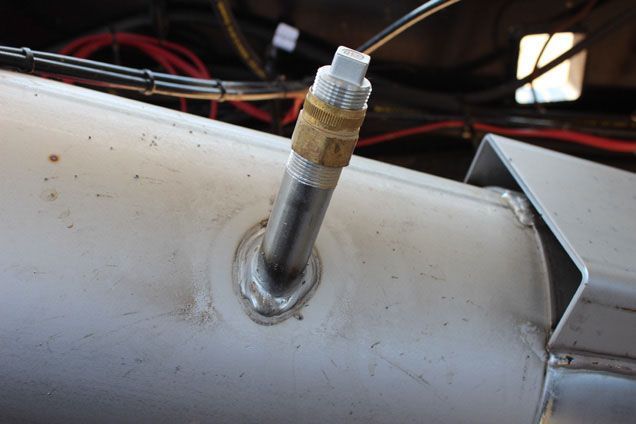

• Remote Grease Zerk Station

• Hydraulic Poly Cleanout Doors

• Hydraulic Vibrators

• Discharge Auger Cleanout Water Hose Fitting

• Unload Rate: 2-3 Tons Per Minute

• Unload Heights:

Rear Discharge Model:

Maximum: 15’ 5” (7’ 1” Reach From Bumper)

Minimum: 8’ 11” (10’ 1” Reach From Bumper)

Side Discharge Model:

Maximum: 15’ 6” (10’ 1” Reach From Fender)

Minimum: 9‘ 9” (13’ 7” Reach From Fender)
